Injection Mini Machine
The Injection Mini is a versatile and user-friendly desktop injection moulding machine. With its compact size and precise performance, it enables the creation of high quality plastic items. It’s ideal for prototyping, small-scale production and educational projects.
The Injection Mini uses a Pneumatic Piston to force molten plastic into your mould of choice. and has the huge advantage of being extremely small, light and portable. Perfect for sustainable businesses and educational facilities.
Compact and easy to use
Key Features
-
Safety Features.
Designed from the ground up for safety and ease of use, the Injection Mini is fully enclosed and has a sensor to ensure no use of the machine can occur if the side door is open.
-
Easier Recycling
The increased barrel size of the Injection Mini means you can add plastic bottle tops directly into the machine without shredding, cutting out a step in the recycling process. Empower your business or educational institution with this sustainable solution.
-

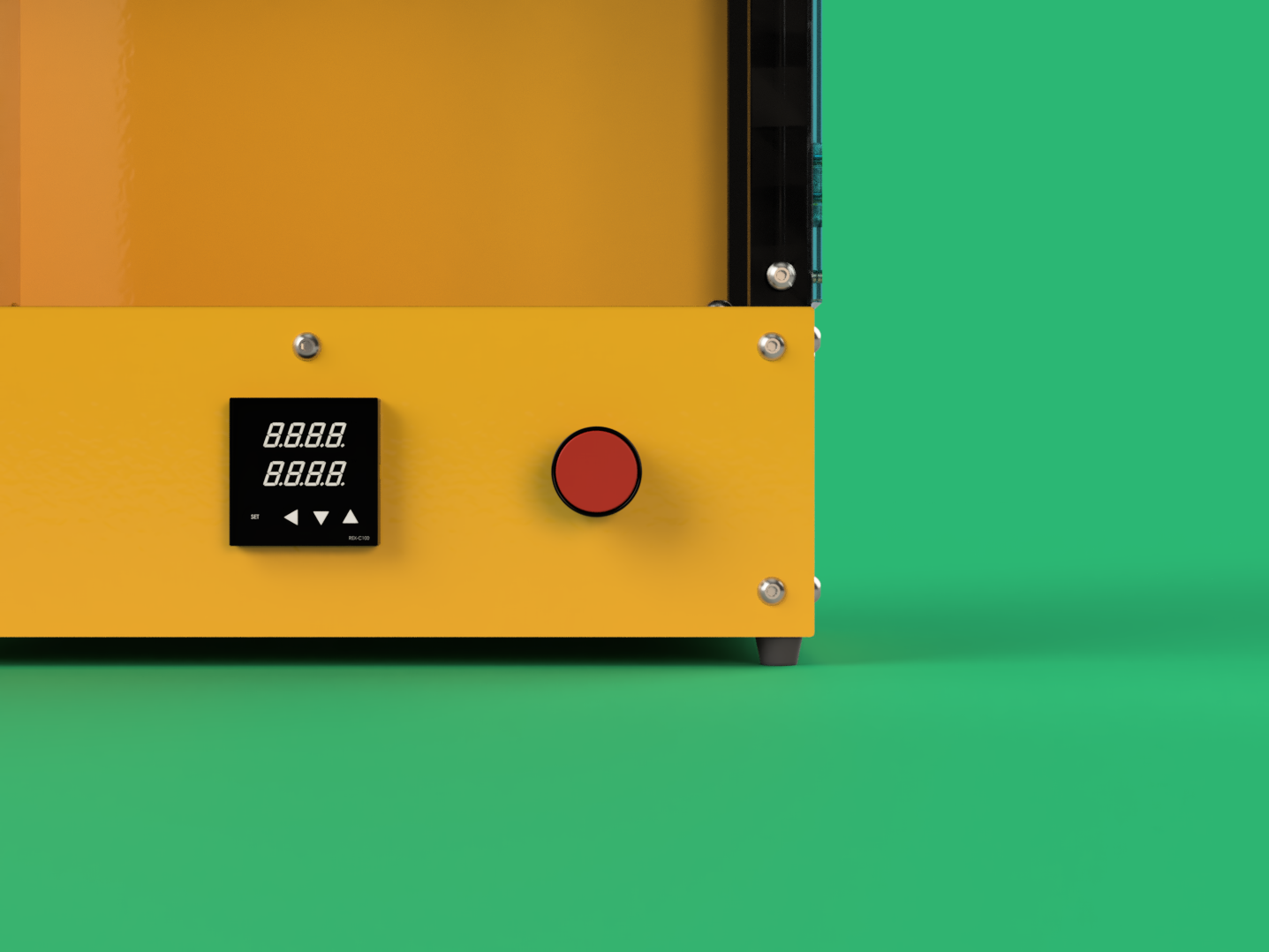

One Button Operation
The Injection Mini is our easiest to use machine yet! With one button operation and an adjustable pressure sensor, you can easily create reliable injections over and over again.
Features and Parameters
12 Months Warranty
Compact Desktop Design
Fully Powder Coated Frame
Pneumatic Injection with a Single Button
Fully Enclosed Design With Sensors on the door
Quick Release Mould Mechanism
Modular and Easily Transported
Shipped with Your Countries Plug
Designed To Be Connected To Our Fume Extractor or any 150mm (4”) Extraction System
Comes with a handy Assembly Guide and a User Manual
Air Compressor NOT included
1/4” High Flow EU Female fitting required
Huge 68g/70cm³ shot size
Massive Mould Space 18 x 16 x 29cm (15cm from nozzle centre)
Available in 220v or 110v configurations
300W Power
Plastic Melting Time: 8-12mins
Max Temperature of 280°c
Supported materials - Wide range of thermoplastics, including PLA, PETG, HDPE, ABS, PS, PP, TPU and LDPE.
Machine dimensions: 15×90×35cm (D×H×W)
Shipping box dimensions: 23kg; 15×90×35 cm
Digital Product Passport
In the pursuit of transparency and our sustainability goals, we have created a digital product passport for the Injection Mini. This document contains information about where our parts are sourced alongside the environmental impacts of your purchase.
Pricing
Kit
£875 / €1000 / $1100
Want to save money and learn how to build the injection machine yourself? Our easy-to-follow step-by-step guides will show you how to connect every cable and bolt to ensure you have a killer injection machine after about 3-4 hours of work.
Part Assembled
£1050 / €1200 / $1330
Wanting us to do the hard work? Great, then the fully built option is for you. All electricals will be completed by our team and all of the components assembled. All you need to do is unpack and attach a compressor. Ready to work after a quick safety check.
FAQs.
Can I plug this into my household power supply?
Yes, the machine is designed to work like any other household electrical appliance. It uses no more electricity than an electric kettle.
Where can I get moulds made?
We offer a mould making service, which starts at as little as £40 per mould. If you have a 3D printer, you can also 3D print your own moulds, or fabricate aluminium moulds with a CNC.
Do you ship internationally?
The UK is a small place so in fact, at least 80% of our customers are from around the world including the USA, Australia and even Japan.
What kind of air compressor do I need?
To ensure optimal performance you'll require an air compressor capable of delivering a minimum of 10 bars of pressure and equipped with a tank capacity of at least 24 liters. These specifications are essential to provide your machine with the necessary power and air volume it needs to operate effectively.
